| Optical parameters | |||||
| Projector technology | Texas Instruments Ti DLP technology | ||||
| Display chip | Ti 0.23 inch DMD (With off-axis 80% optical machine) | ||||
| Type of light source | Osram RGB-LED light | ||||
| Projection brightness | 180ANSI（International standard） | ||||
| Physical resolution | QHD 960*540P | ||||
| Image quality uniformity | >90% | ||||
| Contrast FOFO | 1000:1 | ||||
| 3D technology | Support 3D function DLP-LINK shutter 3D glasses | ||||
| Projection parameter | |||||
| Throw ratio | 1.07:1 | ||||
| Projection frame | 42“ @ 1 meter | ||||
| Projection size calculation method |
Projection ratio (1.07) * projection size (100 inches) * 16:9 screen length (0.0254*0.8716) |
||||
| Screen width ratio | 16:9 / 4:3 | ||||
| Keystone correction | Automatic up and down keystone correction ±40°, support manual side projection function |
||||
| Projection method | Support front projection, rear projection, and hanging projection | ||||
| Focusing method | Standard laser auto-focus | ||||
| Built-in speaker | 5W*2（Super bass surround sound） | ||||
| Fuselage material | Metal ABS,+Body lens adopts closed optical design, to ensure that the lens will not be scratched for 10 years |
||||
| Touch the fuselage | Support for touch navigation control | ||||
| System parameters | |||||
| CPU | MTK Decode 4K H265/AVS2 4K*2K/30HZ | ||||
| Clock Speed | 64-bit CPU: Contex A53 4-core GPU: Mali-G31 | ||||
| Cache | 2GB DDR3 | ||||
| ROM | 32GB eMMC | ||||
| Operating System | AOSP Android 9.0 | ||||
| Bluetooth | BT5.0 (can be connected to an external Bluetooth mouse, Bluetooth speaker, mouse, gamepad) |
||||
| WiFi | 2.4G+5G dual-band | ||||
| Remote Control | Standard infrared remote control, support for external USB 2.4G wireless remote control, Bluetooth remote control mouse |
||||
| Input support | U disk, mobile hard disk, mouse, keyboard access, computer, set-top box |
||||
| Wireless same screen | Support WiFi LAN on the same screen + outdoor no network hotspot on the same screen |
||||
| Wired same screen | Support data cable(wired) same screen technology for IPhone and Android mobile phone |
||||
| Interface parameters | |||||
| Extended Memory | Support U disk and SSD solid state drive | ||||
| USB input | USB HOST 2.0*1 | ||||
| HDMI input | Support HDMI 2.0 input | ||||
| Type-C | Type-C port charge, support with Type-C protocol mobile power supply and power adapter to power the machine |
||||
| Electrical Specifications | |||||
| Total Power Consumption | 10W | ||||
| Built-in battery | Built-in 8000mAh/29.6Wh lithium battery | ||||
| Power input | Power Adapter 12V/2A DC IN | ||||
| Battery life | 130 minutes in highlight mode, 170 minutes in standard mode, 190 minutes in power saving mode |
||||
| Charging time | Fully charged in about 3hours (can be used while charging) | ||||
| Packing list | |||||

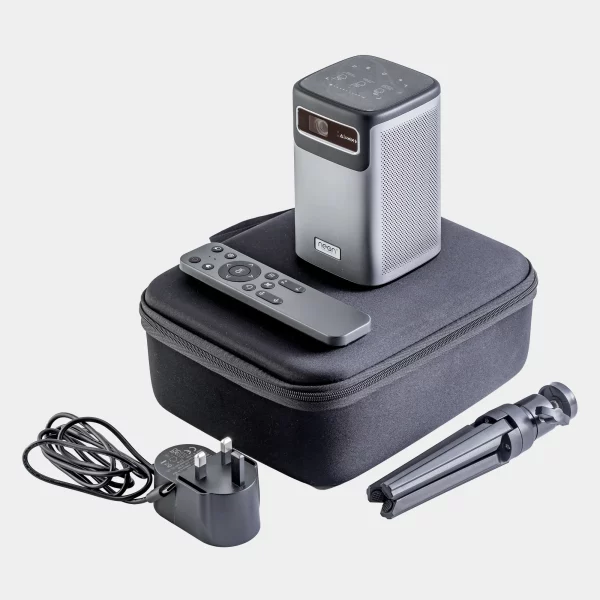

| C2000,Remote control, Power adapter,Tripod, Portable storage bag , Product instruction card | |||||
| Packaging parameters | |
| Product Size | 82*82*142mm |
| Package Size | 245*195*100mm |
| Net Weight | 630g |
| Package Weight(1set) | 13.99Kg |
| Package Weight(10sets/box) | 15.24kg |
| Carton Size(10sets/box) | 53.5*27*43.5CM |
